Provide High-Quality Firefighting Equipment

Product Display

Specifications

CY01-003A

Inlet Thread: G1/2-14

Outlet Thread: M12X1.25

Gauge Connection Thread: G1/8x28

Dip Tube Thread: G1/4x19
CY01-005A

Inlet Thread: M30x1.5

Outlet Thread: G1/8x28

Gauge Connection Thread: M10x1x12.5

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8

Check Valve: Valve core
CY01-005A1

Inlet Thread: M30x1.5

Outlet Thread: G1/8x28

Gauge Connection Thread: M10x1x12.5

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8

Check Valve: Valve core
CY01-005D

Inlet Thread: M30x1.5

Outlet Thread: G1/8x28

Gauge Connection Thread: M10x1x12.5

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8

Check Valve: Valve core
CY01-005D1

Inlet Thread: M30x1.5

Outlet Thread: G1/8x28

Gauge Connection Thread: M10x1x12.5

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8

Check Valve: Valve core
CY01-006G

Inlet Thread: M30x1.5

Outlet Thread: G1/8x28

Gauge Connection Thread: M10x1x12.5

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8

Check Valve: Valve core
CY01-008A

Inlet Thread: M30x1.5

Outlet Thread: G1/4x19

Gauge Connection Thread: NPT1/8x27

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8
CY01-008B

Inlet Thread: M30x1.5

Outlet Thread: G1/4x19

Gauge Connection Thread: NPT1/8x27

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8
CY01-008C

Inlet Thread: M30x1.5

Outlet Thread: G1/4x19

Gauge Connection Thread: NPT1/8x27

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8
CY01-008E

Inlet Thread: M30x1.5

Outlet Thread: G1/4x19

Gauge Connection Thread: NPT1/8x27

Dip Tube Thread: M16x1.5

Pressure Mpa: 2.3-2.8
CY01-010A

Inlet Thread: M30x1.5

Outlet Thread: M10x1.25

Gauge Connection Thread: M10x1x12.5

Dip Tube Thread: M16x1.5
CY01-011A

Inlet Thread: M24x1.5

Outlet Thread: M12x1.5

Gauge Connection Thread: M8x1

Dip Tube Thread: M14x1.5

Fire Extinguishers Manufacturer

A fire extinguisher is a type of equipment used for extinguishing fires, which can be used to extinguish initial fires and prevent them from expanding. The extinguisher is equipped with extinguishing agent, which usually includes foam extinguishing agent, dry powder extinguishing agent, carbon dioxide extinguishing agent, etc. When using a fire extinguisher, spray it onto the source of the fire. The extinguishing agent can suppress flames, reduce temperature, isolate air, and achieve the purpose of extinguishing the fire.

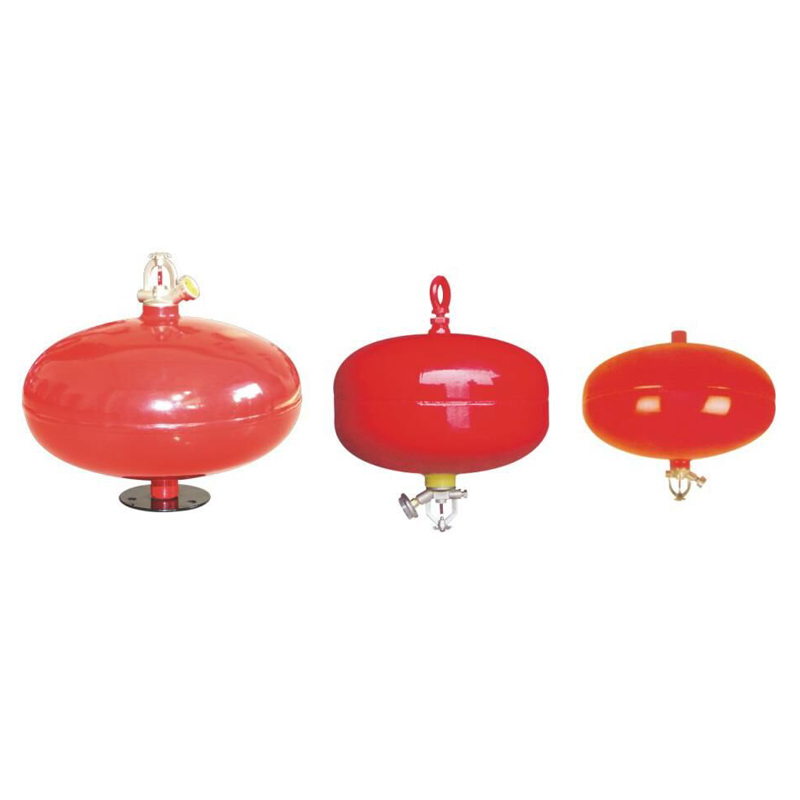

P/N	CY12-003D-1	CY12-003D-2	CY12-003D-3	CY12-003D-4	CY12-003D-5
Model	MFG1	MFG4	MFG6	MFG9	MFG12
Specification	1kg	4kg	6kg	10kg	12kg
Out-diameter (mm)	φ160	φ272	φ295	φ337	φ367
Cylinder Length(mm)	150	200	213	240	262
Powder Weight(kg)	1°-0.20	6°-0.20	6°-0.20	9°-0.20	12°-0.20
Working Pressure(Bar)	13.71	13.71	13.71	13.71	13.71
Min Wall-thickness(mm)	1.3	1.3	1.3	1.3	1.5
Test pressure (Bar)	27	27	27	27	27
Ensure Dimension(㎡）	1	4	6	10	12
Packing Size（cm）	17x17x25	28.5x28.5x31.5	31x31x32.3	35x35x35	38.5x38.5x37.5

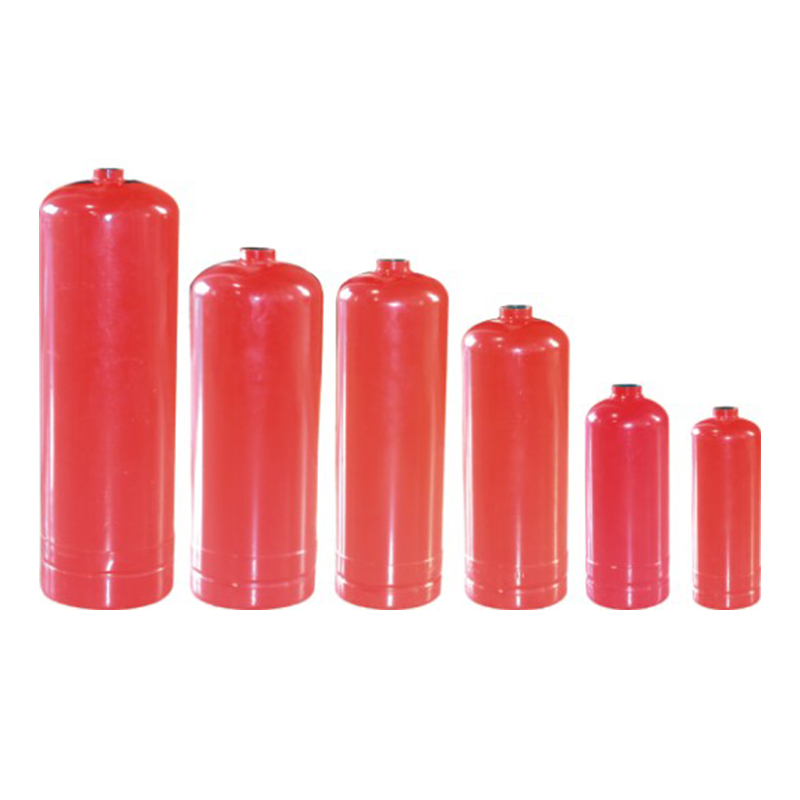

Specification	1kg	2kg	3kg	4kg	5kg	6kg	8kg	9kg
Size mm	Φ90X235	Φ110X310	Φ130X355	Φ130X405	Φ145X408	Φ160X430	Φ160X500	Φ175X510
Material	st12	st12	st12	st12	st12	st12	st12	st12
Packing cm	47x47x25	46x46x33	54x54x37	54x41x42	46x46x43	50x34x145	50x34x52	50x37x53
Packing qty	25	20	16	12	9	6	6	6

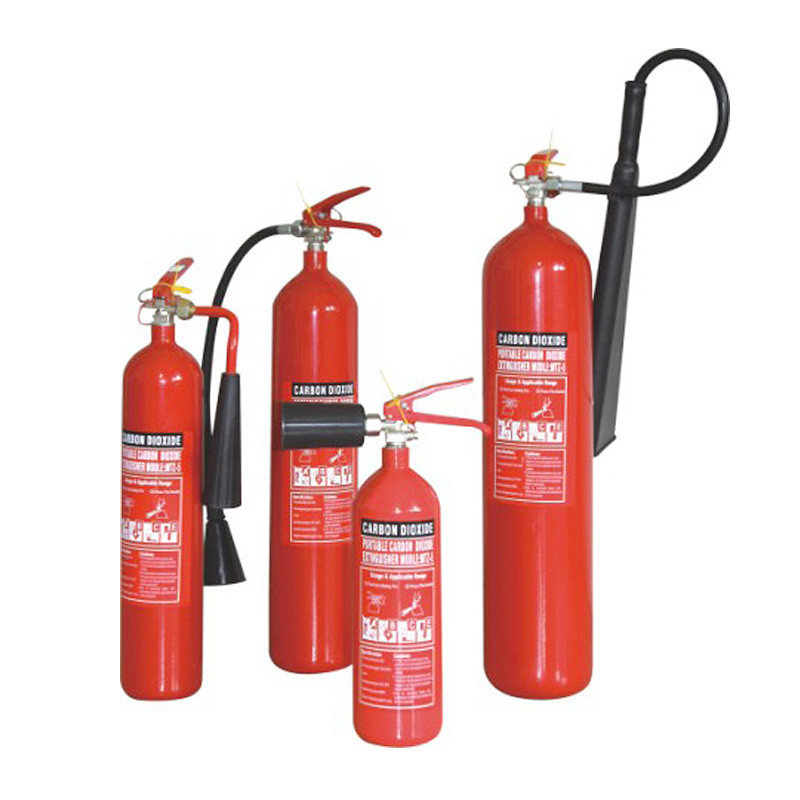

CY12-003A Portable carbon dioxiede fire extinguishers of carbon-steel cylinder	Type	MT-1.3	MT-2	MT-2	MT-2.3	MT-2.3	MT-3	MT-4	MT-4.5	MT-5	MT-6	MT-6.8	MT-7	MT-10
	Out-diameter(mm)	φ108	φ114	φ114	φ114	φ114	φ114	φ152	φ152	φ152	φ152	φ152	φ152	φ168
	Volume(L)	2.00	3.00	2.67	3.45	3.73	4.5	6.00	6.75	7.50	9.00	10.20	10.50	13.50
	Cylinder length(mm)	320	420	380	475	510	600	470	520	570	670	755	770	830
	Cylinder weight(kg)	4.00	6.26	5.75	7.00	7.45	8.70	11.30	12.40	13.50	15.70	17.60	17.80	23.80
	Extinguisher weight(kg)	5.91	9.06	8.55	10.00	10.45	12.60	16.50	18.10	19.70	22.90	25.60	26.00	/
	CO,filled weight(kg)	1.30	2.00	2.00	2.30	2.30	3.00	4.00	4.50	5.00	6.00	6.80	7.00	10.00
	Working pressure(bar)	150	150	200	150	150	150	150	150	150	150	150	150	200
	Test pressure (bar)	250	250	300	250	250	250	250	250	250	250	250	250	300
	Min-wall-thickness(mm)	4.20	4.50	4.50	4.50	4.50	4.50	5.90	5.90	5.90	5.90	5.90	5.90	6.50
	Material	45	CK45	CK45	CK45	CK45	CK45	45	45	45	45	45	45	45
	Packing size(cm) Empty	13x13x34	14x14x44	14x14x40	14x14x50	14x14x53	14x14x62	17x17x49	17x17x54	17x17x59	17x17x69	17x17x77	17x17x79	17x17x93
	Packing size(cm) Full	16x13x46	18x14x55	18x14x53	18x14x60	18x14x64	18x14x73	23x17x61	23x17x64	23x17x71	23x17x80	23x17x88	23x17x90	25x17x105

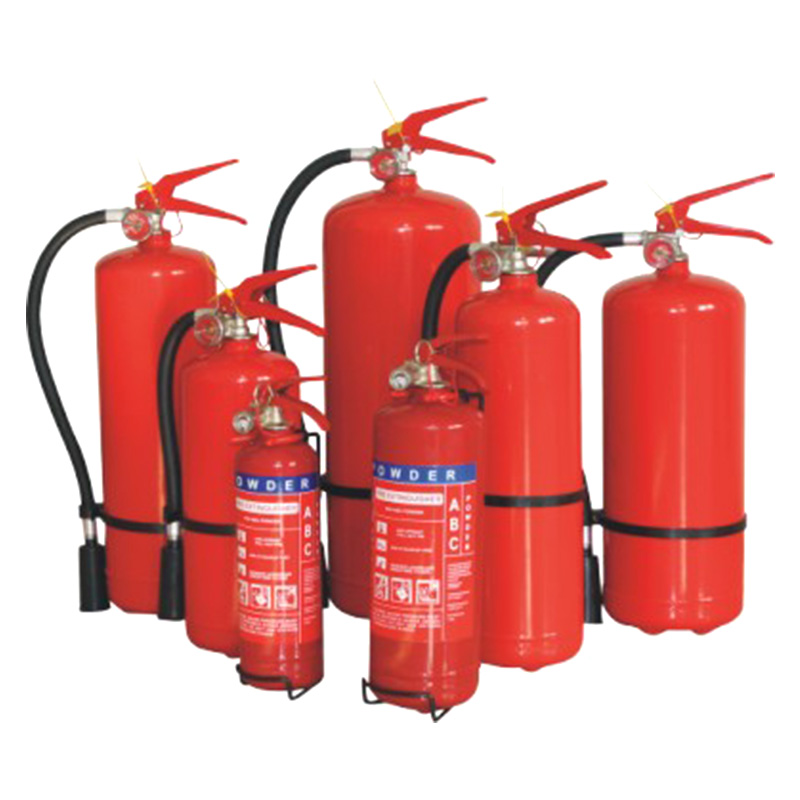

P/N	CY12-003B-01	CY12-003B-02	CY12-003B-03	CY12-003B-04	CY12-003B-05	CY12-003B-06
Model I	MFZL1	MFZL2	MFZL3	MFZL4	MFZL5	MFZL6
Specification	1kg	2kg	4kg	5kg	6kg	9kg
Out-diameter(mm)	φ85	φ110	φ130	φ145	φ160	φ175
Fire Rating	5A/55B	8A/70B	13A/113B	21A/140B	27A/183B	34A/233B
Powder Weight(kg)	1.0°-0.02	2.0°-0.02	4.0°-0.02	5.0°-0.02	6.0°-0.02	9.0°-0.02
Working Pressure(Bar)	14	14	14	14	14	14
Test Pressure(Bar)	27	27	27	27	27	27
Range of Dischaege(m)	≥3	≥3	≥3	≥4	≥4	≥5
Duration of Discharge(a)	≥8	≥10	≥13	≥14	≥14	≥16
Wprking Temperature Range(℃）	-30℃~60℃	-30℃~60℃	-30℃~60℃	-30℃~60℃	-30℃~60℃	-30℃~60℃

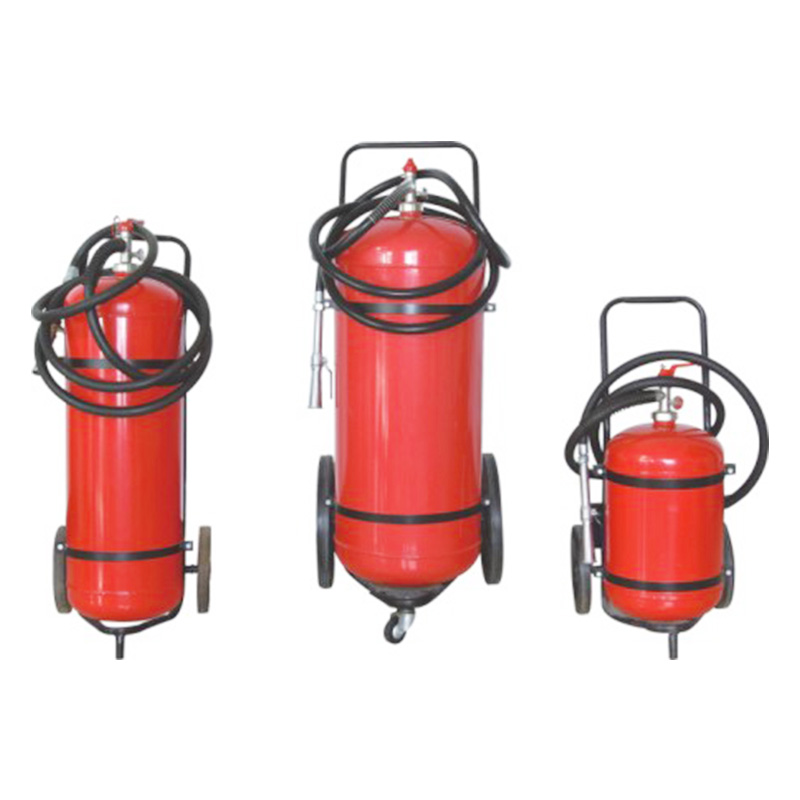

Number	Capagity	Hose length	Overall Height	Overall Width	Cylinder Material
CY12-003C-01	25kg	5m	970mm	315mm	Mild Steel
CY12-003C-02	30kg	5m	970mm	315mm	Mild Steel
CY12-003C-03	50kg	5m	1100mm	315mm	Mild Steel
CY12-003C-04	100kg	5m	1350mm	430mm	Mild Steel
